Command Vehicle Chimera Conversion, Part 8

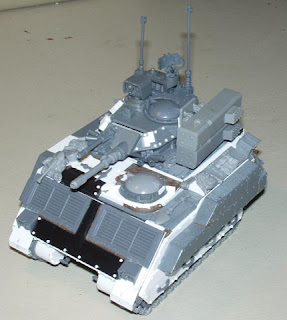

Rivets rivets rivets! This time I put in a lot of little details. Rivets all over the place, some reactive armor plates on the turret, handles on the maintenance panels on the tracks, packs etc., all over the place.
I was having problems with the turret (mainly the missile rack in locked position) banging into the top of the driver's hatch when I traversed it. Therefore I had to have driver's hatch hinge with a low footprint--and I finally figured it out--one pin coming out the side connecting it to the rest of the hull, and a small hinge sticking out the left side of the hatch. and I forgot to take a picture with the hatch open, but I'll rectify that later.
I had to do a bit of surgery on the missile rack, as despite my best efforts, in the locked position it was just too low, and banging into things all over the place when I traversed the turret. So I added a shim to raise it up a bit (you can see the white plasticard shim I at the attachment point of the mount to the turret). Now it clears the driver's hatch just fine.
Aside from some very minor tweaking, I'm about ready to paint this up!
